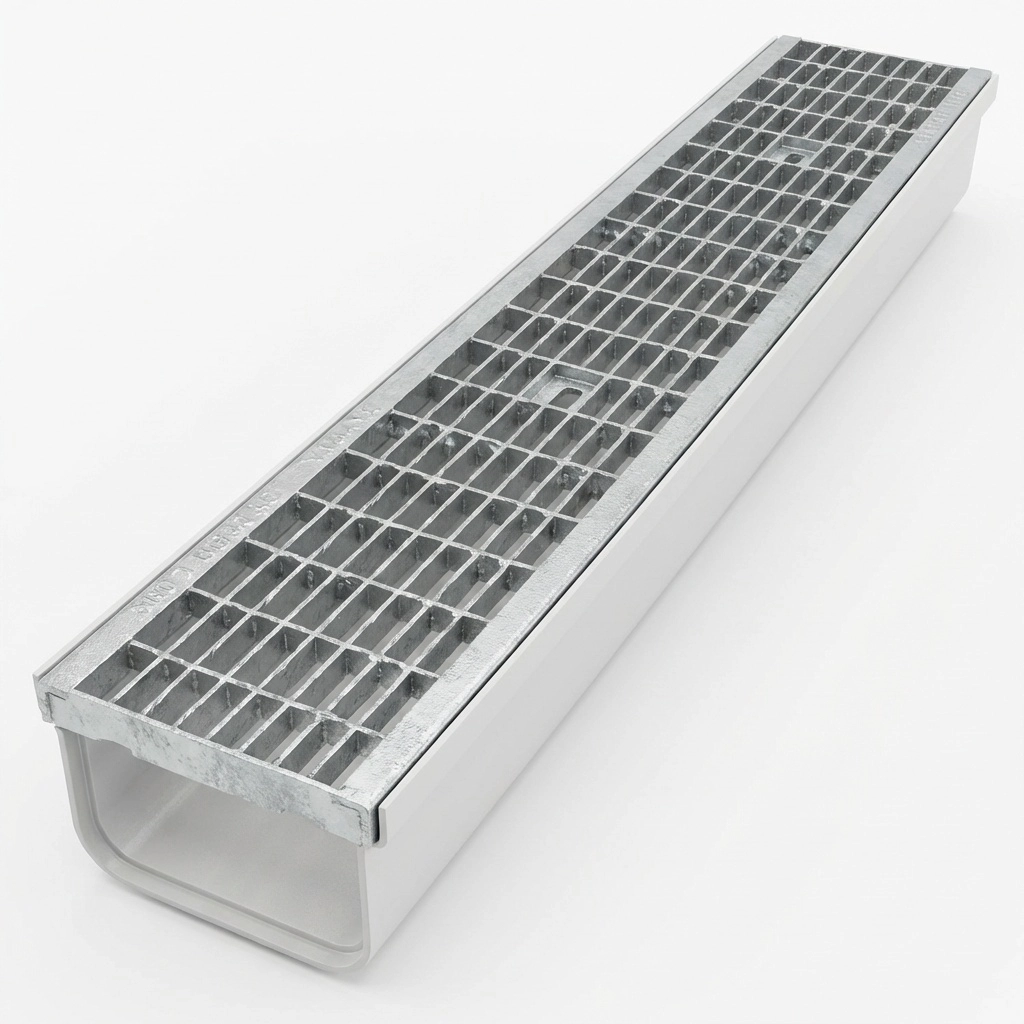

Product image is indicative. Actual dimensions and construction details may vary depending on size/model. Please refer to the listed specifications.
Grate and Channel Set B125 (1000mm)
Engineered for Seamless Integration. Built for the Long Term.
The Grate and Channel set is a drainage grate constructed from high-quality steel, designed to efficiently manage surface water run-off in exterior environments. It delivers excellent corrosion resistance and reliable long-term performance. Every unit is independently tested and certified to ISO and CE European standards. Custom dimensions are available on request.
Need a Quote?
Click “Add to Quote” for tailored recommendations and technical guidance from our team.
Product Description
This rainwater grate is ideal for applications such as ramps, walkways, surrounding areas, balconies, and other outdoor surfaces where effective drainage is required. Its robust galvanized construction ensures enduring resistance to the elements and consistent performance under continuous water flow. The grate can be installed on its own or paired with a compatible base frame for flexible installation options.
Additional Information
- Technical Specifications
- Certifications
- Applications
- Delivery & Installation
- Technical Specifications Table
| Width | 130mm – 200mm |
|---|---|
| Length | 1000mm |
| Height/ Bearing bar | 25mm – 120mm |
| Applications | Water run-off, drainage for ramps, surrounding areas balconies, walkways |
Certifications
Every Talantzis Hellas product is independently tested and certified to meet ISO and CE standards — confirming full compliance with European safety and performance requirements.
Applications
Ideal for ramps, walkways, balconies, surrounding areas, and outdoor surfaces where reliable surface drainage is required.
Delivery & Installation
Each unit arrives ready for installation, supplied with or without assist mechanisms to suit your project needs. Every Talantzis Hellas product is fully assembled and tested before dispatch, with installation carried out to exacting standards of alignment, sealing, and surface integration for lasting performance.
Installation support and technical guidance are available upon request when placing your order.
Technical Specifications Table
Stainless Steel Grating / Channel – Technical Specifications
| Code | Type | Width (mm) | Length (mm) | Height (mm) | Load Class | Discount |
|---|---|---|---|---|---|---|
| POZ90-1351ZBA | Grating | 130 | 1000 | 25 | B-125 | |
| POZ90-1361ZBA | Grating | 200 | 1000 | 25 | B-125 | |
| POZ91-1300P | Channel | 130 | 1000 | 75 | ||
| POZ90-1310P1 | Channel | 130 | 1000 | 120 |
All dimensions are in millimetres (mm).
